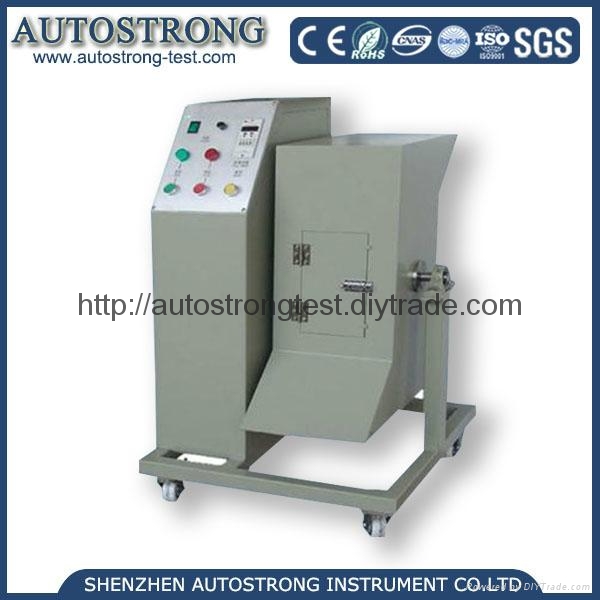

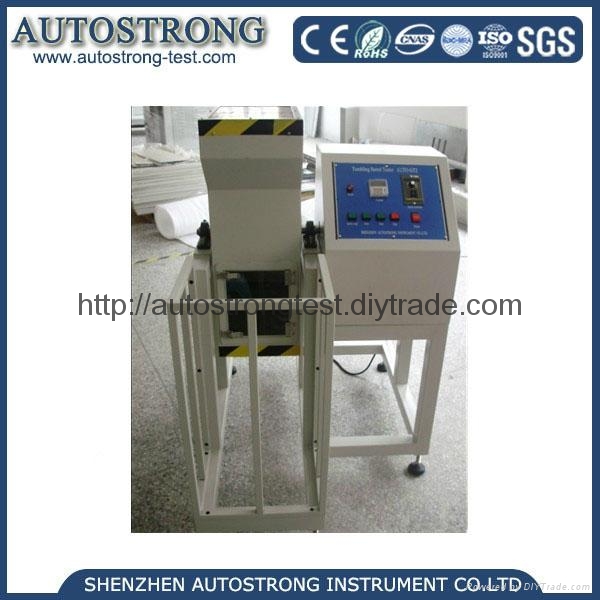

IEC60068-2-32 Tumbling Barrel Test Machine for Iphone 6
1. Application:
The Tumbling Barrel Testing Machine simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.
The Tumbling Barrel Testing Equipment is the recommended instrument to perform such a test. A barrel is turned at a rate of five revolutions per minute resulting in ten falls per minute. The sample falls from a heightof 500mm on to a steel plate that is 3mm thickand backed by 19mm thick hardwood. The number of falls is set by the user in accordance to the standard they are meeting. After the tumble barrel procedure, the specimen is checked visually, mechanically, and electrically as prescribed in the relevant specification.
2. Specification:
Tumbling Barrel Tester is made to the specifications set forth in major international standards.
Tumbling Barrel Tester employs a large clear acrylic access door for easy viewing and access
To the chamber. Models are offered with a standard barrel with a drop height of 500mm. Barrels
Of other sizes are available as well for standards such as IEC 60312 or DIN 60312 where a drop
Height of 800mm (or 1000mm)is required.
3. Advantages:
1). Professional technology support and agent brand equipment;
2). Reasonable price and high quality;
3). Fast shipment by reputed shipping line;
4). Package as buyer's special request;
5). Best attiude, best service.
4. AUTOSTRONG strategic cooperation with Germany WAZAU, Germany PTL company, Germany FISCHER, Japanese minebea, and on going technical exchange.
5. Our products include: Glow wire tester, Needle flame tester, horizontal and vertical burning tester, tracking tester, Tumbling Barrel Test Machine,textile burning tester, protective clothing thermal conductivity tester, automotive interior combustion tester, melt dripping tester, building materials flammability tester, friction tester, test finger, spring hammer, universal testing machine and other testing instruments.
Please feel free to contact us if you are interested in our products. We'll be very happy to give your the best quotation on your detail requirements.
